Item Animation

Animated icons are mainly implemented through the frames node, which configures a List collection where the objects in the collection are item frames For example:

'animatedIcon':
  material: stone
  frames:
    - material: stone
    - material: diamond
      last: 20

Item Frames

Each item frame contains the same nodes as the display part of icons, as follows:

Node	Aliases	Accepted Values	Description
last	delay	Long	Duration of the item frame
material	texture, mat	String / Object	Icon material (vanilla or special source)
head	skull	String	Custom skull material
zaphkiel	zap	String	Zaphkiel plugin support
oraxen	-	String	Oraxen plugin support
itemsadder	ia	String	ItemsAdder plugin support
NeigeItems	ni	String	NeigeItems plugin support
craftengine	ce	String	CraftEngine plugin support
HMCCosmetics	hmc	String	HMCCosmetics plugin support
SX-Item	si	String	SX-Item plugin support
MMOItems	mi	String	MMOItems plugin support
EcoItems	eco	String	EcoItems plugin support
MagicCosmetics	magic	String	MagicCosmetics plugin support
headdatabase	hdb	String	HeadDatabase plugin support
serialized	base64	String	Serialized base64 item
kether	-	String	Kether script item
name	-	String	Item display name
lore	lores	String / List	Item display description
amount	count, amt	Int	Item quantity
damage	durability, dur	Int	Item durability
customModelData	model	Int	Item model ID (1.14+)
color	-	String	Item color
glow	shiny	Bool	Whether item glows
enchantments	enchantment, enchant	Map	Item enchantment properties
flags	flag	List	Item flags
unbreakable	-	Bool	Whether item is unbreakable
nbt	-	Map	Item NBT properties
enhancedLore	-	Bool	Enable enhanced Lore parsing
slot	slots	(List) Int / String	Specify display slots

The new node last specifies the duration of this item frame

tip

Item frames only need to configure partial properties. When playing to this frame, the item will only change the properties configured in this frame
All other properties remain unchanged

Default Properties

Default properties of the dynamic frame system are set through the frames-properties property under the icon root node

Node	Aliases	Accepted Values	Description
frames-properties	frames-prop, prop	Object	Dynamic item frame default settings

frames-prop:
  last: 20
  mode: reversable

• last is the default duration of item frames
• mode is the playback mode

Playback Modes

Mode	Description
LOOP	Sequential loop (default)
ONE_WAY	Single loop
REVERSABLE	Forward and reverse loop
RANDOM	Random frame selection

Did you know?

The playback mode of dynamic titles also has the same configuration properties

Examples

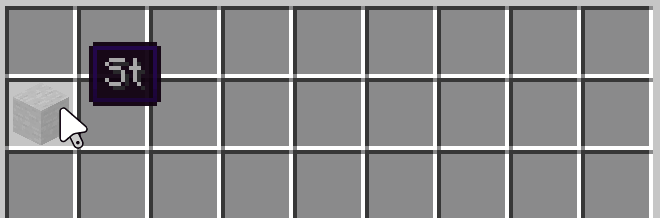

'animatedStone':
  material: stone
  frames-prop:
    last: 3
    type: reversable
  frames:
    - name: S
    - name: St
    - name: Sto
    - name: Ston
    - name: Stone

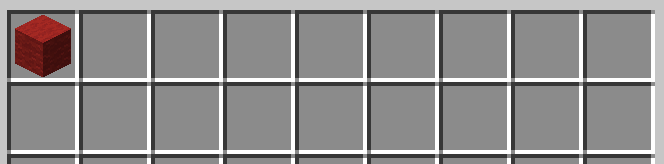

'rainbowRunningWool':
  material: white wool
  frames-prop:
    last: 3
    type: reversable
  frames:
    - material: red wool
      slot: 0
    - material: orange wool
      slot: 1
    - material: yellow wool
      slot: 2
    - material: green wool
      slot: 3
    - material: lime wool
      slot: 4
    - material: cyan wool
      slot: 5
    - material: pink wool
      slot: 6
    - material: pink wool
      slot: 7
    - material: gray wool
      slot: 8

Time Units

Unless otherwise specified, time units are in ticks
20 ticks = 1 second
