Scroll Panel

Scroll panels are special panels that display configured icon columns in sequence, supporting vertical and horizontal scrolling to view more content.

Declaration

In addition to the common properties of regular panels, generator panels have an independent configuration node. Through this node, a scroll panel can be declared.

Node	Accepted Value	Description
scroll	Object	Declare scroll panel settings

Properties

The following properties are all under the scroll node:

Node	Accepted Value	Description
direction	String	Scroll direction (default is HORIZONTAL)
tail	Int	Tail behavior
colums	List	Scroll columns

• direction available values:
  • horizontal horizontal
  • vertical vertical
• tail determines how scrolling ends:
  • tail = 0 stops at the last column (no blank display)
  • tail > 0 displays tail+1 blank columns
  • tail < 0 loops seamlessly
• colums configures scroll column elements

Scroll Window

You need to define the scroll window using Layout, by leaving a blank rectangle in the Layout.

For example, with the configuration:

layout: |-
  <       >

The scroll window will be a 7x1 window located at [1, 0]. The size of the scroll window and the scroll direction will determine the upper limit of element column configuration.

Horizontal Scrolling

For horizontally scrolling windows, each scroll column should include scroll window height elements. For example, for a 7x5 window, each column should include at most 5 elements, and the elements in each column are arranged from top to bottom.

Vertical Scrolling

For vertically scrolling windows, each scroll column should include scroll window width elements. For example, for a 9x6 window, each column should include at most 9 elements, and the elements in each column are arranged from left to right.

Scroll Columns

There is no upper limit to the number of scroll columns in a scroll window. However, the number of elements in each scroll column is limited by the direction distribution.

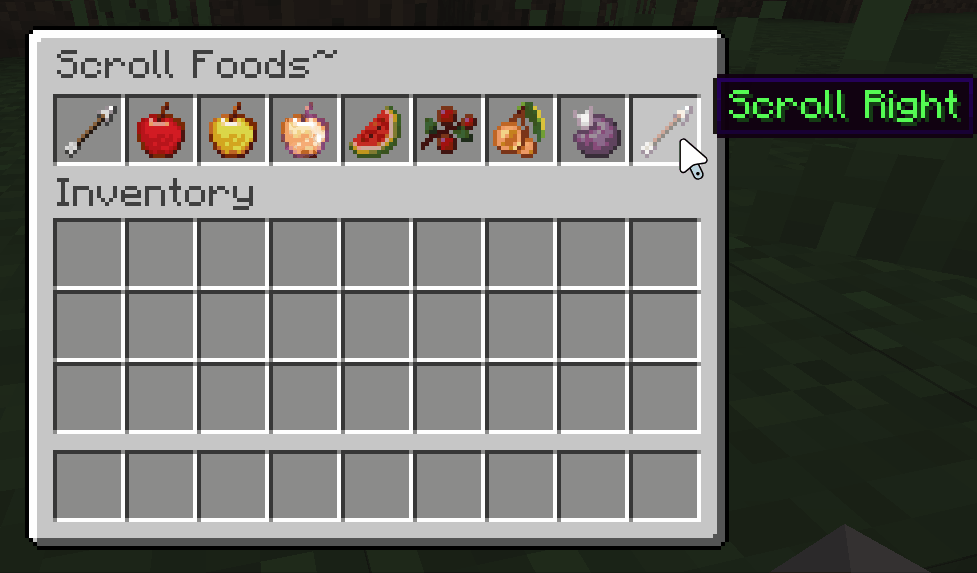

For example, for a horizontally scrolling panel:

layout: |-
  <       >

Its scroll window size is 7x1, and the upper limit for a single column is 1 element. It can be configured as follows:

scroll:
  direction: horizontal
  tail: -1
  colums:
    - [ material: apple ]
    - [ material: golden_apple ]
    - [ material: enchanted golden apple ]
    - [ material: melon slice ]
    - [ material: sweet berries ]
    - [ material: glow berries ]
    - [ material: chorus fruit ]
    - [ material: carrot ]
    - [ material: golden carrot ]
    - [ material: potato ]
    - [ material: baked potato ]
    - [ material: poisonous potato ]
    - [ material: beetroot ]
    - [ material: dried kelp ]
    - [ material: raw beef ]
    - [ material: steak ]
    - [ material: raw porkchop ]
    - [ material: cooked porkchop ]

Also allowed to be simplified as

scroll:
  direction: horizontal
  tail: -1
  colums:
    - material: apple
    - material: golden_apple
    - material: enchanted golden apple
    - material: melon slice
    - material: sweet berries
    - material: glow berries
    - material: chorus fruit
    - material: carrot
    - material: golden carrot
    - material: potato
    - material: baked potato
    - material: poisonous potato
    - material: beetroot
    - material: dried kelp
    - material: raw beef
    - material: steak
    - material: raw porkchop
    - material: cooked porkchop
